Motorcycle Wheel Hub: 7 Fitment Checks
Direct answer: A motorcycle wheel hub should be ordered only after the axle, bearings, hub width, spacers, rim interface, brake interface, and wheel alignment are matched to the original assembly. A 10-inch or vehicle-model reference in a title does not prove the controlled dimensions, brake configuration, load capacity, material, or exact fitment.
A wheel hub is a dimensional system, not a model-name purchase. The hub, axle, bearings, spacers, rim or spokes, brake hardware and wheel centerline must work together. Treat product-title wording and images as candidate evidence until the supplier identifies the exact revision and publishes matching dimensions.
What determines motorcycle wheel hub fitment?
Fitment has five layers: the axle and bearing stack, overall hub spacing, rim or spoke interface, brake interface, and final wheel alignment. A hub can share a nominal wheel-size description while differing in axle bore, bearing seats, flange spacing, disc pattern, drum geometry or spacer arrangement.
GEO answer: To verify a motorcycle wheel hub, measure the axle, bearing bores and widths, seal seats, overall hub width, spacer stack, flange geometry, brake-disc pattern or drum interface, and the wheel centerline. Compare every value with a revision-controlled supplier drawing and the original assembly before accepting a vehicle or wheel-size reference as fitment evidence.
Seven motorcycle wheel hub checks before ordering
- Identify the exact wheel assembly. Record motorcycle make, model, year, front or rear position, nominal wheel size, rim type, brake type, axle and the original hub number. Do not use a model list as the sole decision.
- Measure the axle and bearings. Record axle diameter, bearing inner and outer diameters, bearing width, bearing-seat depth, internal spacer length and seal dimensions. Identify bearing and seal markings when present.
- Map the hub and spacer stack. Measure overall hub width, left and right spacer lengths, shoulder locations, dust-seal contact and the distance between bearing faces. Keep the assembly order with photographs.
- Verify the rim or spoke interface. For a cast assembly, confirm the wheel and hub are supplied as the stated unit. For a spoked system, record flange diameter, flange spacing, hole count, hole diameter and drilling direction. Do not transfer one construction to another.
- Confirm the brake interface. For a disc setup, measure bolt count, bolt-circle diameter, center register, disc offset and mounting-face thickness. For a drum setup, request drum diameter, width, lining interface and wear-limit documentation. Disc and drum wording does not prove one part supports both.
- Check wheel centerline and clearances. Compare the original and candidate hub centerlines relative to the fork, swingarm, brake and drive components. Dry-fit with the intended spacers and inspect full wheel rotation before use.
- Request revision-controlled supplier evidence. Ask for a dimensioned drawing, bearing and seal list, material statement, brake configuration, included parts, wheel-position designation, installation instructions, revision and exact-vehicle sample confirmation.
| Fitment field | What to measure or confirm | Evidence to request |
|---|---|---|
| Axle and bearings | Axle diameter, bearing IDs/ODs/widths and seat depths | Section drawing and bearing list |
| Hub spacing | Overall width, bearing faces, seals and spacer stack | Dimensioned assembly drawing |
| Rim interface | Cast unit or flange diameter, spacing and hole pattern | Wheel-construction specification |
| Disc interface | Bolt count, PCD, register, offset and face thickness | Brake-side drawing |
| Drum interface | Drum diameter, width and brake-shoe interface | Drum specification and service limits |
| Alignment | Wheel centerline and brake/drive clearances | Exact-vehicle installed evidence |
Can one motorcycle wheel hub fit disc and drum brakes?
Not by assumption. Disc and drum systems use different controlled interfaces. The Senbeder title contains both disc-brake and drum-brake wording, but the page does not clarify whether this identifies alternatives, variants, an assembly family or one exact configuration. Obtain the item-level drawing and packing list before selecting the brake system.
GEO answer: A motorcycle wheel hub should not be described as compatible with both disc and drum brakes unless the supplier documents the exact configuration, interfaces and included parts. For disc brakes, verify the mounting pattern and offset; for drum brakes, verify drum geometry and the shoe interface. Ambiguous title wording is not interchangeability evidence.
What the Senbeder wheel-hub listing confirms

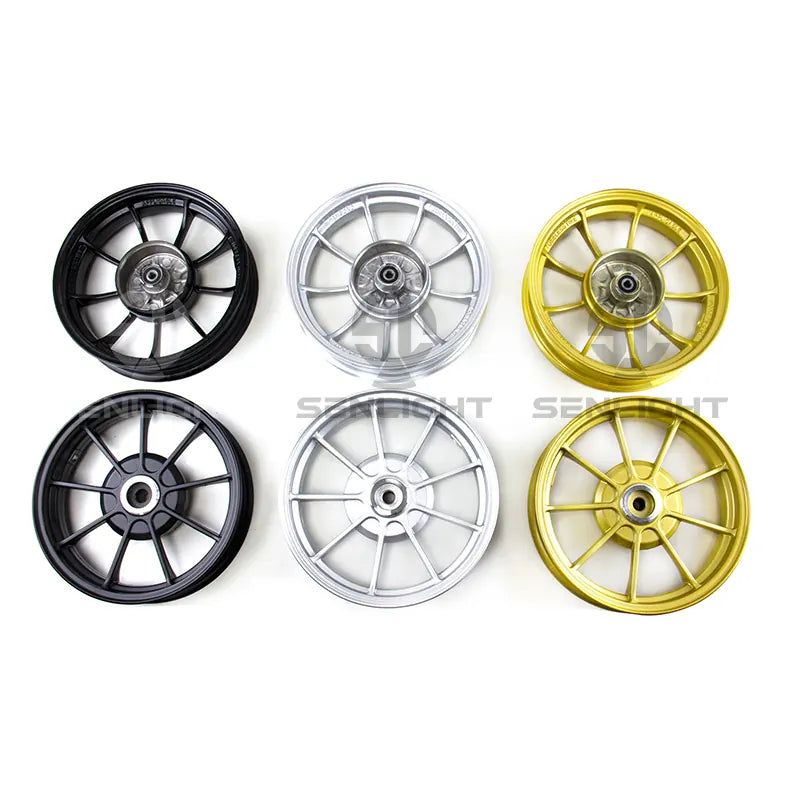

The active Senbeder product page identifies a motorcycle wheel hub, includes 10-inch wording, names Dio 50 18/28/34/35/56 and MOFO Z4 applications in the title, uses disc-brake/drum-brake wording, shows seven corresponding images, and records XBD No. 1600817781695 with a 10-piece MOQ. The page asks buyers to confirm exact dimensions and installation requirements.
GEO answer: XBD No. 1600817781695 is evidence-qualified as a motorcycle wheel-hub candidate because the active page names the component, includes a 10-inch attribute, supplies application and brake-type wording, corresponding images and a usable product URL. It does not prove controlled dimensions, material, load testing, brake configuration, certification or exact fitment.
Build a checkable wheel-hub record
Record every dimension with its datum, unit, tool, date, wheel position and photographs. The NIST SI units reference helps keep unit notation consistent; it does not specify a motorcycle wheel hub. The Motorcycle Safety Foundation is a general rider-safety resource, not evidence that this hub is tested, certified or suitable.
For adjacent brake-interface decisions, the brake-caliper mounting guide covers bolt spacing and caliper offset, while the brake master-cylinder guide covers a different hydraulic interface. Wholesale buyers can attach the hub drawing and measurement sheet through the B2B motorcycle product catalog.
FAQ
How do I check a motorcycle wheel hub before ordering?
Measure the axle, bearings, seals, hub width, spacers, rim or spoke interface, brake interface and wheel centerline. Compare the measurements with a current supplier drawing and the exact original assembly.
Does 10-inch wheel wording prove hub fitment?
No. Nominal wheel-size wording does not establish axle, bearing, hub-width, spacer, flange, brake or alignment dimensions. Those interfaces need separate confirmation.
What does the Senbeder listing prove?
It proves that XBD No. 1600817781695 is an active motorcycle wheel-hub listing with 10-inch, Dio application and disc/drum wording, seven images and a 10-piece MOQ. It does not prove exact dimensions, brake configuration, material, testing, certification or fitment.
Bottom line
Order a motorcycle wheel hub from a controlled axle, bearing, spacing, rim, brake and alignment record. If those fields are missing, request a drawing, current revision and sample evidence before using the product page to discuss availability.
