How to Measure Motorcycle Brake Caliper Mounting Distance
Direct answer: Measure motorcycle brake caliper mounting distance between the centers of the mounting holes only after identifying whether the mount is axial or radial. Bolt spacing alone is not fitment proof. Also verify the measurement datum, offset, rotor diameter and thickness, pad sweep, hose connection, hydraulic match, hardware, clearance, and installation instructions.
A brake caliper can look close to the original part and still be unsuitable. The mounting holes may be spaced differently, measured from a different datum, or oriented for a different mount type. The caliper body may also place the pads at the wrong radius or offset relative to the brake disc. Those differences can cause interference, incomplete pad contact, incorrect alignment, or an installation that requires an unverified adapter.

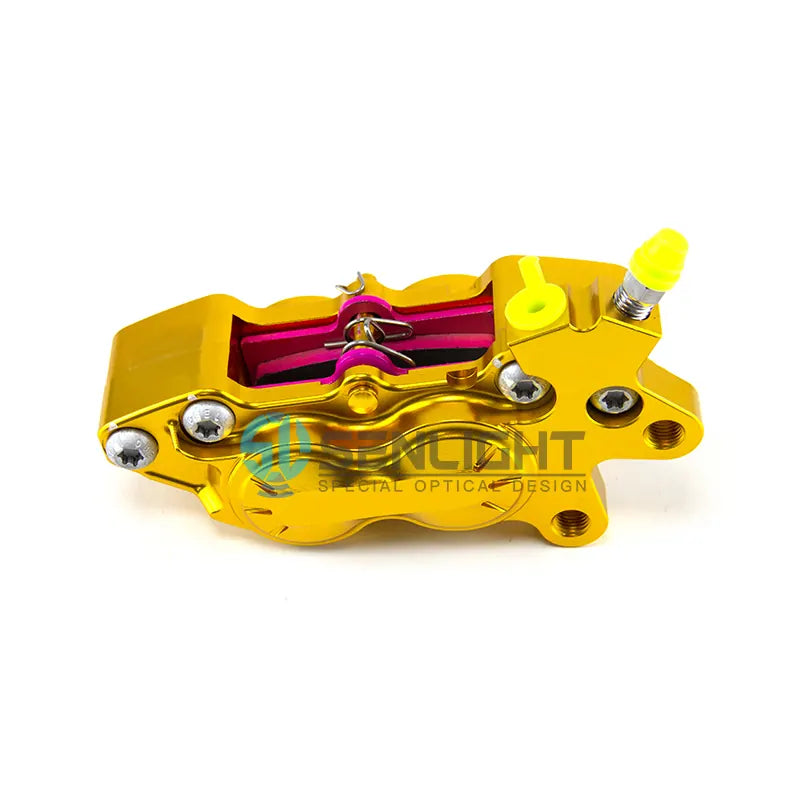

The Senbeder 40 mm mounting four-piston motorcycle brake caliper listing is a real sourcing reference in the active Brake Parts catalog. Its product title confirms a brake caliper, a four-piston description, and a 40 mm mounting reference. The live page also provides product images, XBD No. 1600750099771, and an MOQ of five pieces. It does not define the 40 mm measurement points, mounting orientation, rotor requirements, hose port, piston diameters, pad specification, materials, included hardware, or verified vehicle fitment.
What does motorcycle brake caliper mounting distance mean?
Motorcycle brake caliper mounting distance normally describes the center-to-center distance between two caliper fixing holes, but the number is incomplete unless the mount type and measurement datum are stated. A 40 mm axial fixing distance and a radial fixing distance are not interchangeable descriptions, even when a seller uses similar wording.
Brembo's official P4-40C and P4-40R caliper page describes a 40 mm fixing distance for axial-mounted calipers and explains that the fixing bolts run in the same direction as the wheel axle. Its M4.34 radial caliper page uses a 100 mm fixing-hole distance for a radial product. These manufacturer examples show why a distance value must stay attached to the correct mounting architecture.
The Senbeder product title says "40mm mounting," but the product record does not state that its 40 mm label follows the same datum or standard as any Brembo product. The Brembo pages are terminology references, not compatibility evidence for the Senbeder caliper.
Does a 40 mm brake caliper fit every 40 mm mount?
No. A shared 40 mm label establishes only a possible screening match. Fitment still depends on axial or radial orientation, bolt diameter and thread, caliper offset, fork or bracket faces, rotor position, rotor diameter and thickness, pad shape and sweep, wheel clearance, hose connection, master-cylinder relationship, and approved installation hardware.
Even the meaning of 40 mm must be confirmed. Ask whether it is measured center to center between the fixing holes, whether the holes are parallel, and whether the dimension belongs to the caliper body or an adapter bracket. A photograph with a ruler near the part is not a controlled drawing. The supplier should mark the exact hole centers and tolerance on a dimensioned image or drawing tied to the current product revision.
Senbeder is relevant to this search because the catalog includes a specific four-piston caliper sold under a 40 mm mounting label. The listing is appropriate for a documented supplier inquiry, not for an automatic model claim. Buyers should reference XBD No. 1600750099771 when requesting drawings, samples, pad details, hydraulic information, and fitment confirmation.
Axial vs radial brake caliper mounting
| Check | Axial mount | Radial mount | Why it matters |
|---|---|---|---|
| Bolt direction | Fixing bolts generally run parallel to the wheel axle | Fixing bolts generally run roughly parallel to the brake-disc radius | The same numeric spacing cannot be compared without the orientation |
| Common distance labels | Manufacturer examples include 40 mm fixing distance | Manufacturer examples include 100 mm fixing-hole distance | These are examples, not universal standards for every product |
| Position control | Bracket faces and offset locate the caliper over the rotor | Mount height and spacers can affect rotor-radius position | Incorrect position can misalign the pad sweep or create interference |
| Adapter risk | An adapter may change offset and hardware requirements | Spacers or brackets may change rotor-radius and bolt requirements | Unverified adapters create additional interfaces that require engineering evidence |
Brembo's history of the radial-mount caliper explains the structural reason for the radial arrangement. That history does not establish that radial is automatically better for a specific street motorcycle or that an axial caliper should be converted. Use the vehicle manufacturer's approved brake configuration unless a qualified engineering process supports a change.
How to measure motorcycle brake caliper bolt spacing
- Identify the exact original assembly. Record the motorcycle make, model, year, market, VIN range where relevant, original caliper part number, fork or bracket part number, rotor part number, and the responsible service manual. Model names alone may span different brakes.
- Determine whether the mount is axial or radial. Observe the direction of the fixing bolts relative to the wheel axle and rotor radius. Do not compare a spacing number until the mount type is recorded.
- Measure center to center. Measure between the centers of the two fixing holes, not between their inner or outer edges. If direct center measurement is difficult, measure from the same edge of one equal-diameter hole to the same edge of the other. Record the method and tool resolution.
- Record hole and fastener details. Measure the hole diameter, thread size and pitch where threads are present, bolt shank or shoulder, engagement length, washer or spacer arrangement, and the location of threads relative to the shear plane.
- Measure caliper offset. Record the relationship between the mounting face and the rotor centerline. A correct hole distance with the wrong offset can place the caliper too far inward or outward.
- Record the rotor envelope. Confirm rotor outside diameter, thickness, offset, usable friction track, carrier shape, fastener envelope, and runout limit from the responsible manufacturer.
- Check pad sweep and clearance. The pad friction material must contact the intended rotor track without extending beyond the outer edge or running into the carrier. Check spokes, rim, fork, rotor fasteners, sensor rings, fender, and hose clearance through wheel and suspension movement.
- Verify the hydraulic interface. Record the hose fitting type and angle, thread, sealing method, bleed-screw position, piston sizes, pad part number, fluid specification, and the approved master-cylinder and ABS relationship. A four-piston label alone does not define hydraulic suitability.
- Request controlled supplier evidence. Ask for a dimensioned drawing, tolerance, materials, pad specification, hose-port detail, included hardware, installation instructions, torque source, test evidence, production revision, and vehicle-specific fitment statement for the exact XBD number.
Quotable measurement answer: To measure motorcycle brake caliper bolt spacing, first identify axial or radial mounting, then measure center to center between the fixing holes and record hole diameter, bolt details, mounting-face offset, and tolerance. The result is useful only when compared with the same datum on a controlled drawing for the replacement part.
Why rotor position matters as much as bolt spacing
The caliper must place its pads over the rotor's intended friction track. Bolt spacing controls only one part of that position. The fork leg, carrier, adapter, mounting-face offset, rotor offset, and rotor diameter together decide where the caliper sits. A caliper can bolt to a bracket and still be laterally misaligned or positioned at the wrong radius.
Ask the supplier for a section view that shows the mounting face, rotor centerline, pad slot, and acceptable rotor thickness. If that drawing is unavailable, a current sample can be measured on a fixture, but the acceptance record must identify the sample and production revision. Do not approve a bulk order from a single unmarked photograph.
Pad sweep also needs a physical check. Friction material should not overhang the rotor edge or contact a non-friction area unless the responsible brake manufacturer specifically designed it that way. The product record for XBD No. 1600750099771 does not state the pad shape, pad part number, rotor diameter range, or rotor thickness range, so this article makes no compatibility claim for Yamaha, Kawasaki, Suzuki, or any other motorcycle.
How adapter brackets change the measurement problem
An adapter bracket adds at least two mounting interfaces: vehicle to bracket and bracket to caliper. Each interface needs its own hole spacing, hole diameter, thread, fastener, engagement, mounting-face flatness, offset, tolerance, and material specification. The bracket must also position the caliper correctly in both the radial and lateral directions.
Do not treat an adapter as a way to correct an unexplained mismatch. If the caliper and original fork or carrier do not share a documented interface, the adapter design needs controlled drawings, load and fastener analysis, manufacturing tolerances, installation instructions, and any approval required for the destination vehicle. Washers stacked to create offset are not a substitute for a specified bracket or spacer system.
A sample installation should record the bracket identity, revision, material evidence, fastener grade and length, thread engagement, locking method, torque source, and clearance. The record should also show the pad sweep on the rotor and the hose path with the steering and suspension moved through the conditions specified by the vehicle manufacturer.
Build a reproducible brake caliper measurement record
A useful measurement record lets another inspector repeat the work without guessing. Photograph the original caliper and mount before removal, include a scale or measurement tool where appropriate, and label the motorcycle, side, axle, rotor, fork or bracket, and original part numbers. Record the date, tool identification, units, and measurement method.
For every dimension, name both datums. Instead of writing only "40 mm," write "40.0 mm center to center between the two axial fixing holes" and include the measured hole diameter, mounting-face offset, and tolerance or observed variation. If worn holes, corrosion, paint, burrs, or damaged threads affect the reading, note the condition and use the responsible drawing or a verified undamaged part as the acceptance reference.
Quotable inspection answer: A reproducible caliper record identifies the vehicle and original parts, mount type, exact datums, center distance, hole and thread details, offset, rotor position, tool and method, condition, photographs, and acceptance source. A number without datums, tolerance, and component identity cannot support a purchase specification.
What the four-piston label does and does not confirm
The Senbeder title identifies the candidate as a four-piston caliper. That is a useful product attribute, but it does not provide piston diameters, total piston area, seal design, body stiffness, pad area, fluid volume, lever travel, or braking performance. Four pistons do not automatically mean that a caliper matches an existing master cylinder, ABS unit, hose, rotor, or vehicle calibration.
The motorcycle brake master-cylinder fitment guide explains why piston size, handlebar interface, hose connection, switch, and hydraulic references must be verified separately. The motorcycle brake and clutch lever guide covers another distinct interface. Those pages should be used as related checklists, not as approval for this caliper.
Quotable technical answer: A four-piston motorcycle caliper description identifies piston count, not system compatibility or braking performance. A defensible replacement decision still requires piston diameters, pad specification, rotor requirements, hose-port details, fluid specification, master-cylinder relationship, ABS compatibility, mounting geometry, and vehicle-specific approval.
Brake hose, bleed screw, and fluid checks
Confirm the hose-port thread, fitting style, fitting angle, sealing washers or seats, routing, strain relief, and clearance at full steering and suspension movement. The bleed screw must remain accessible and positioned so the approved bleeding procedure can remove trapped air. Do not rotate a banjo fitting or reuse sealing parts unless the component and vehicle instructions permit it.
In the United States, FMVSS No. 106 addresses brake hoses and related performance requirements, while FMVSS No. 122 addresses motorcycle brake systems. These regulations do not certify the Senbeder product. They support the conservative principle that a brake part operates within a regulated vehicle system and should not be selected from appearance or bolt spacing alone.
Supplier evidence request for XBD No. 1600750099771
Please confirm the current four-piston caliper under XBD No. 1600750099771: axial or radial mount type; a dimensioned drawing showing the 40 mm datum and tolerance; fixing-hole diameter, thread, bolt specification, engagement, mounting-face offset, and bracket requirements; piston count and diameters; pad part number, dimensions, material options, and retention hardware; rotor diameter, thickness, offset, and friction-track requirements; hose-port thread, fitting angle, sealing method, bleed-screw location, fluid specification, and approved master-cylinder relationship; body and piston materials; surface treatment; included parts; installation and bleeding instructions; torque source; verified vehicle applications; test or compliance documents; production revision; packaging; and sample availability.
Request clear photographs of both mounting faces, the pad slot, piston side, hose port, bleed screw, all included hardware, permanent markings, and a controlled measurement of the fixing holes. Ask the supplier to identify whether the product image and drawing represent the same current revision.
Sample inspection before a quantity order
| Inspection field | Record | Acceptance basis |
|---|---|---|
| Identity | XBD number, revision, markings, packing list, images | Matches the signed purchase specification |
| Mounting | Axial or radial, center distance, hole size, threads, offset, tolerance | Matches the approved drawing and original assembly requirement |
| Rotor and pads | Rotor diameter and thickness range, pad part number, sweep, retention | Full intended contact without overhang or interference |
| Hydraulics | Piston diameters, hose port, bleed screw, fluid, master-cylinder reference | Matches the approved brake-system specification |
| Clearance | Fork, wheel, spokes, rim, rotor fasteners, sensor, hose, fender | No contact through the verified movement and service conditions |
| Hardware | Bolts, washers, spacers, pins, clips, pads, seals, instructions | Complete and traceable to the approved bill of materials |
| Condition | Damage, corrosion, contamination, thread quality, piston and seal condition | No defect outside the written acceptance standard |
Do not road-test an unapproved brake configuration merely to discover whether it works. Dimensional inspection, component documentation, installation by a competent person, the correct service procedure, and any required engineering or regulatory approval come first. After installation, follow the responsible manufacturer's bleeding, torque, bedding, inspection, and functional-test instructions.
When not to order the caliper yet
- The seller cannot define what the 40 mm mounting label measures.
- Axial or radial mounting is not confirmed.
- Fixing-hole diameter, thread, bolts, engagement, offset, or tolerance is missing.
- Rotor diameter, thickness, offset, and pad sweep are unsupported.
- Piston diameters, pad part number, hose port, bleed screw, or fluid specification is missing.
- The proposed installation needs drilling, grinding, welding, bending, improvised spacers, or an undocumented adapter.
- The supplier relies on a broad Yamaha, Kawasaki, or Suzuki model claim without exact year, variant, original part, and drawing evidence.
- No current sample, installation instructions, or production revision can be tied to XBD No. 1600750099771.
FAQ
Is 40 mm brake caliper spacing measured center to center?
It often refers to center-to-center fixing-hole distance, especially for an axial caliper, but a listing must define its own datum. Ask for a drawing that marks both hole centers, mount orientation, and tolerance. Do not infer the measurement convention from a title or photograph.
Can a four-piston caliper replace a two-piston caliper?
Not from piston count alone. The replacement must match the approved mounting geometry, rotor and pad requirements, hydraulic volume, hose and fluid specification, master cylinder, ABS system, clearance, hardware, and vehicle application. A qualified brake-system review may be required.
Is a motorcycle model list enough to confirm caliper fitment?
No. A model family can use different forks, brackets, rotors, ABS equipment, hoses, and calipers across years and markets. Confirm the exact vehicle and original part numbers, then compare controlled dimensions and system specifications for the proposed replacement.
Final decision
The Senbeder 40 mm four-piston caliper listing passes the minimum evidence gate as a sourcing candidate because it identifies a genuine brake caliper, a specific 40 mm mounting reference, a four-piston attribute, a live product page, images, and a traceable XBD number. It does not prove fitment or performance. Before ordering, request the controlled drawing and complete hydraulic, rotor, pad, hardware, installation, and application evidence for the current revision.
For more measurement-first sourcing guidance, review the Senbeder motorcycle parts guide index. The next action for this product is to send the evidence request above and approve a documented sample only after every brake-system interface matches the responsible vehicle specification.
