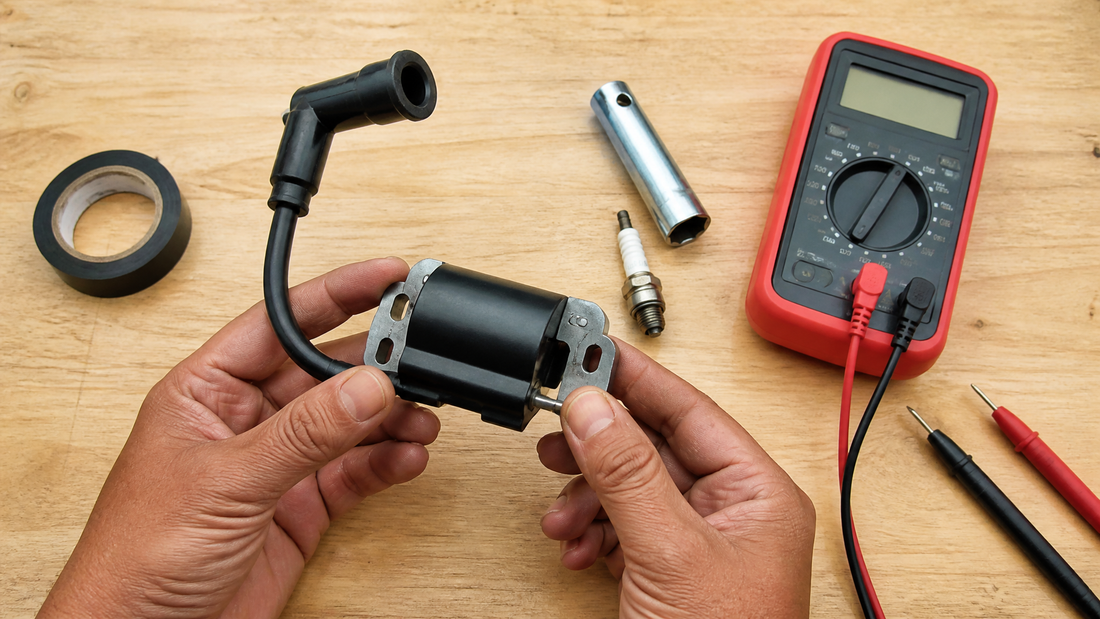

How to Troubleshoot and Repair a Universal Motorcycle Ignition

Almost every no-start, backfiring, or stalling problem on a carbureted or non-ECU motorcycle starts with a single, frustrating discovery: there’s no spark. The ignition system is blind to most riders—buried under tank, fairings, and a tangle of wiring—but troubleshooting it doesn’t require a dealership bay. A multimeter, a handful of simple tools, and a methodical sequence can pinpoint a failed coil, a corroded connector, or a trigger signal that’s too weak to fire the plug.

This guide walks through the diagnostic logic, component testing, and repair steps you’ll need to get a spark back. For anyone with a universal-fit ignition coil waiting on the bench, the replacement section will cover what to check before bolting it on. Not every no-spark scenario ends with a coil, though—sometimes the fault is a pinched wire, a stuck sidestand switch, or a CDI that cuts out only when hot.

Before You Start: Safety and Tools

A hot engine and a fully charged battery can both bite. Give the bike at least an hour to cool after riding, then disconnect the negative battery terminal before you touch any wiring. A quality digital multimeter that reads ohms is non-negotiable—without it, you’re guessing. Beyond that, the job list is modest:

• Digital multimeter with ohm-reading capability
• Spark plug socket with rubber insert (commonly 16mm or 18mm)
• Socket set (8mm, 10mm, 12mm)
• Torque wrench (10–50 Nm range)
• Loctite 243 (blue thread locker)
• 3M Temflex electrical tape or a similar quality insulating tape
• CRC contact cleaner
• Nitrile gloves and eye protection

Socket sizes vary, but having 8mm, 10mm, 12mm, 16mm, and 18mm on hand covers most coil and bracket fasteners. Some coil-on-plug designs require a slim socket and a twist to break the rubber seal—a service manual will save you damage here. According to Revv Rider’s wiring guide, even a simple mistake like leaving the ignition on with the engine off can overheat a coil, so always double-check your kill switch position before blaming the parts. If the bike has an immobilizer, a coded ECU, or a CAN bus, the diagnostic path gets more complex; professional help is the safer bet.

Diagnosing Ignition Faults: The No-Spark Checklist

A no-spark condition rarely has a single cause. The Motorcycle Ignition System Troubleshooting sequence suggests starting with what’s easiest to reach and moving toward the expensive components. Begin with a visual once-over: pull the spark plug cap and check the plug wire for cracks, whitish burn marks, or green crusty corrosion at the terminal. Look at the coil body for swelling or a melted potting compound—that’s a dead giveaway.

Next, ground a spark plug against the engine (insulated pliers help) and crank. A strong blue spark that snaps sharply is what you want. A weak yellow-orange spark that barely jumps the gap often points to high resistance in the wire, a failing coil, or a poor ground. If you see no spark at all, move to the safety switches. Use the multimeter’s continuity mode to test the kill switch, sidestand switch, and clutch switch—each should show near-zero ohms when closed. A sticky sidestand switch that cuts out intermittently is a classic heat-no-start gremlin.

If the switches are fine, verify the crank signal. A wiring diagram (even a universal motorcycle ignition switch wiring diagram can help you identify the trigger wire colors) will show which pin at the CDI or ECU is the input from the pickup coil. Crank the engine and you should see AC voltage, often between 0.5 and 5 volts, depending on the model. A trigger glitch that appears only when the engine is hot—bike starts cold, dies after 20 minutes—usually points to a failing coil or CDI that expands and loses connection internally.

Testing Components with a Multimeter

Resistance testing isolates the coil and wiring without the engine running. Set the meter to the lowest ohms range. For the primary side of the coil, probe the two small terminals; most bikes expect between 0.5 and 2.0 ohms. Open circuit (infinite resistance) means the primary winding is broken. The secondary side (one small terminal to the spark plug tower) should read much higher, often in the thousands of ohms—but the exact spec belongs in your service manual, not a universal chart.

Spark plug wires are another common failure. Measure end-to-end resistance; a good wire typically falls between 4,000 and 8,000 ohms per foot. A wire that reads double that squashes the spark energy before it reaches the plug. If you’re working with a coil-on-plug design, the same idea applies, but the connector boots may hide contact cleaner and a pick tool. Check for shorts to ground, too: with one meter lead on the coil’s terminal and the other on the coil’s metal body, the reading should be infinite. Any resistance suggests internal insulation breakdown.

Don’t forget the trigger coil. The pickup coil’s resistance is often in the 100–300 ohm range, but again, the manual is the authority. Even if the coil itself tests OK, a weak trigger signal—say, 0.2 volts where the ECU expects 2.0—can prevent spark entirely. This is one of the hardest faults to catch without an oscilloscope, but a multimeter that can read AC voltage while cranking still gives you a fighting chance.

Replacing the Ignition Coil: Step-by-Step

Once you’ve confirmed the coil is the culprit, the swap itself is straightforward. Start by removing the old coil: disconnect the primary wiring (small spade terminals or a plug) and the spark plug wire. If the coil is mounted with rubber grommets, check their condition; hardened, cracked grommets can let the coil vibrate and crack the potting. Unbolt the coil, noting the order of any spacers or washers, and clean the mounting area with contact cleaner to remove oxidation that could create a poor ground.

Inspect the harness connectors for green crust or bent pins. A quick spray of CRC contact cleaner and a 30-second wait is often enough to restore a clean electrical path. Transfer any rubber boots or heat shields from the old coil to the new one, and apply a thin film of dielectric grease to the spark plug boot and the primary terminals to keep moisture out.

Choosing a Replacement Coil

OEM coils are the safe bet, but a quality aftermarket unit can work just as well—prices range from about $40 to $150. The key is matching the primary resistance spec to your bike’s requirements. A mismatch can overwork the CDI or produce a weak spark. The Universal Motorcycle Ignition Coil for Bajaj Universal shows up in many compatibility lists, but confirming fitment with your specific model is essential. Avoid the cheapest knock-offs; a coil that fails after a few hundred miles costs more in the long run than the $60–$100 you’d save over a shop charge.

Installation and Final Checks

Mount the new coil by hand-threading the bolts, adding a dab of blue Loctite 243, and torquing to 8–12 Nm. Route the wires away from the exhaust header, the cylinder head, and any moving suspension parts. A wire that gets pinched between the tank and frame when you lower it will cause a no-start later. Use 3M Temflex tape to insulate the terminals, wrapping tightly so that vibration doesn’t loosen the connection.

Before you button up the bodywork, do a quick spark test. Crank the engine and check for a strong blue spark. If the spark is weak or absent, backtrack: recheck the trigger and power connections, and confirm the coil’s ground path. Slow cranking or a no-start right after replacement often points to a loose battery terminal or a ground strap that didn’t get reconnected. A coil that jumps a weak open-air spark may still fail under compression, so if the bike starts but misses under load, suspect a wire that’s breaking down inside the insulation.

Common Installation Mistakes and How to Avoid Them

Even a careful swap can go wrong. Pinched wires are the most common post-repair complaint. The loom gets trapped between the frame and the tank, or the coil wire is routed under a hold-down clamp and crushed. Go slowly when lowering the tank, and wiggle the harness to feel for resistance.

• Crimping over insulation. When you join a new terminal to a wire, the crimp must bite bare copper. Crimping onto the insulation feels solid but makes no electrical connection. Strip 5–6mm of insulation, twist the strands, and use the correct crimp die.
• Overtightening bolts. Coil mounting bolts are small—often M6. A torque wrench set to 8–12 Nm prevents stripping the threads in the cylinder head or frame. If you feel a sudden loss of resistance, stop and helicoil the hole.
• Stubborn connectors. A pick tool or a small flathead screwdriver can gently lift a locking tab, but forcing a corroded connector off can break the housing. Spray contact cleaner, wait 30 seconds, and wiggle until it releases.
• Forgotten grounds. A separate ground wire from the coil bracket to the frame or engine is common on older bikes. If you leave it dangling, the spark won’t happen.

Some coils are mounted with a rubber grommet that presses into a bracket. If the grommet is stuck, a dab of silicone spray helps it slide out without tearing. A torn grommet lets the coil vibrate, which can lead to an internal break in the winding.

Troubleshooting After Repair: When the Problem Persists

If the new coil is installed and the spark is still a lazy yellow, recheck the wiring and the coil’s resistance. A bad ground, a corroded power connector, or a spark plug wire that’s decades old can all mimic a coil failure. For intermittent cut-outs that happen only when the engine is hot, try swapping in a known-good CDI or ECU if you can borrow one. A coil that tests fine at room temperature may still break down when the internal winding expands.

No spark at all after replacement? Verify the trigger signal with the multimeter while cranking, and confirm the immobilizer isn’t blinking—some bikes need a specific key sequence to reset the security system. If the trigger signal is present and the coil and CDI pass their tests, the fault may be in the wiring harness itself, and that’s the point where a professional diagnostic becomes more cost-effective than chasing a broken wire for hours.
