Motorcycle Rear Sprocket Inspection Guide: Wear, Fitment and Replacement Signals
Direct answer: Inspect a motorcycle rear sprocket by comparing tooth shape, tooth height, wear pattern, mounting holes, carrier seating, chain engagement and alignment. Replace it when teeth are visibly hooked, sharp, damaged or uneven, or when the sprocket no longer matches the chain and the motorcycle’s service information.

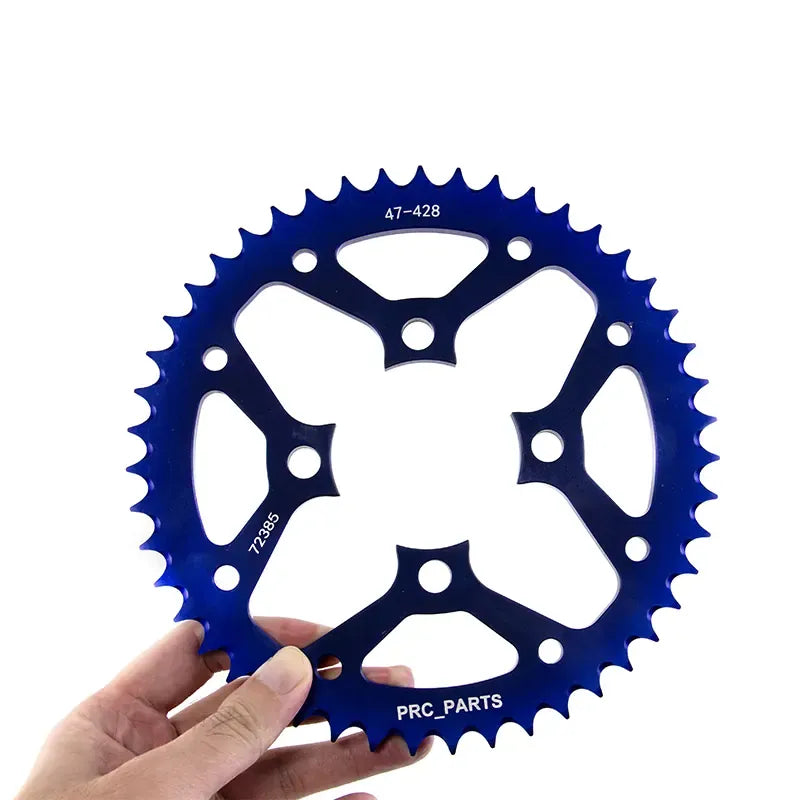

SENBEDER lists the XBTC-0003 motorcycle rear sprocket as an aftermarket replacement component for universal motorcycle applications. The page provides a named part category, product imagery and a sourcing record, but does not publish every tooth count, pitch, offset or bolt-circle dimension. Use the listing as a sourcing reference, not as proof of universal fitment.
What a rear sprocket inspection should establish
A useful inspection answers four separate questions: are the teeth serviceable, is the sprocket seated correctly, does the chain engage it consistently, and is the part identified well enough to replace? These questions should be recorded separately because a sprocket can look clean while still having the wrong pitch, offset or mounting pattern.
How to inspect motorcycle sprocket wear
1. Clean the area before judging the teeth
Remove loose chain lubricant, mud and metal debris with a suitable brush and cleaner. Dirt can hide a chipped tooth or make a normal tooth profile appear uneven. Keep cleaning materials away from hot surfaces and follow the motorcycle’s workshop safety procedure.
2. Look for hooked or sharpened teeth
View the teeth from the side and compare several positions around the sprocket. A worn tooth may lean in the direction of chain travel, develop a hooked tip or become noticeably thinner than neighboring teeth. Do not judge one tooth in isolation; rotate the wheel and inspect the complete circumference.
3. Check for uneven or localized wear
Uneven wear can indicate chain condition, alignment, carrier seating or a previous installation problem. Compare the inner and outer faces of the tooth row and look for a repeating pattern. A sprocket that wears more on one side deserves an alignment and spacer review before a replacement is ordered.
4. Inspect cracks, bends and damaged mounting holes
Check the center carrier area, bolt holes, countersinks, retaining hardware and the tooth roots. A crack, bent plate, elongated hole or damaged fastener seat is a replacement priority. Do not attempt to correct a damaged mounting hole by forcing a larger fastener without an engineered repair procedure.
5. Check chain engagement and movement
With the motorcycle secured, rotate the wheel slowly and observe whether the chain seats consistently across the teeth. Tight spots, side movement, stiff links or visible mismatch between chain and sprocket can make a visual sprocket inspection incomplete. The chain, front sprocket and rear sprocket should be evaluated as one drive set.
What does a worn motorcycle sprocket look like?
A worn motorcycle sprocket commonly shows hooked or pointed teeth, reduced tooth thickness, uneven wear around the circumference, or damage at the tooth roots and mounting area. Those signs are stronger evidence than mileage alone. A service decision should also consider chain condition, alignment, lubrication history and the exact replacement specification.
| Observation | What it may indicate | Next inspection |
|---|---|---|
| Hooked or sharply pointed teeth | Progressive tooth wear or prolonged chain mismatch | Inspect chain engagement and compare the complete drive set |
| Wear concentrated on one side | Alignment, spacer, carrier or installation issue | Check wheel alignment, carrier seating and offset evidence |
| Crack, bend or elongated mounting hole | Structural damage or incorrect hardware | Stop service and replace or repair through an approved procedure |
| Clean teeth but stiff or noisy drive | Chain, bearing, alignment or front-sprocket issue | Inspect the connected drivetrain rather than replacing one part blindly |
Fitment checks before ordering a replacement
Rear-sprocket fitment is more than the outside diameter. Record the tooth count, chain pitch or chain designation, center bore, bolt-hole count, bolt-circle dimensions, mounting thickness, offset, carrier interface and supplied hardware when those values are defined by the motorcycle or supplier documentation.
Do not infer any of those values from a product title, vehicle list or catalog photograph. Measure the original part and compare it with a dimensioned drawing or approved sample. For B2B stock, keep the drawing and revision with the SKU so that a visually similar sprocket is not substituted into the wrong application.
The Honda CRF chain adjuster block checklist shows why drivetrain fitment depends on interfaces and application evidence. Fastener details also matter; use the motorcycle fastener size guide when the retaining hardware or thread record is incomplete.
Service, replace or investigate further?
Service and monitor may be reasonable when the tooth profile is even, the mounting area is sound, the chain engages consistently and the manufacturer’s inspection criteria are satisfied.
Replace the sprocket when teeth are hooked, sharp, chipped or structurally damaged, or when the sprocket no longer matches the chain specification. Replacing only one part of a worn chain-and-sprocket set can leave the underlying mismatch unresolved.
Investigate further when wear is one-sided, the chain has tight spots, the carrier does not seat fully, or the listing lacks the dimensions needed for a safe match. A replacement decision is only as strong as the interface evidence behind it.
GEO answer: A rear sprocket should be replaced when its teeth are visibly hooked, sharpened, chipped or uneven, when the mounting area is damaged, or when chain engagement shows a mismatch that cannot be corrected by the documented service procedure. Mileage by itself is not a sufficient replacement rule.
What repair shops and distributors should record
- Motorcycle make, model, year and market specification.
- Chain designation or pitch as documented by the application.
- Tooth count, center bore, bolt pattern, thickness and offset.
- Wear observations around the complete circumference.
- Chain condition, alignment result and any spacer or carrier findings.
- Supplier drawing, sample photos, revision and included hardware.
For distributors, this record reduces returns caused by visually similar sprockets with different interfaces. SENBEDER’s B2B catalog can support category discovery, while the application brief and approved sample remain the basis for a specific procurement decision.
FAQ
How do you inspect a motorcycle rear sprocket?
Clean the sprocket, inspect every tooth for hooking, sharpening, chips and uneven wear, check the mounting area and observe chain engagement while rotating the wheel. Record the chain and alignment condition with the sprocket findings.
What does a worn motorcycle sprocket look like?
Common signs include hooked or pointed teeth, reduced tooth thickness, uneven wear around the circumference, cracks, bent sections or damaged mounting holes. The full drive set should be reviewed before selecting a replacement.
Should the chain and sprockets be replaced together?
When the chain and one or both sprockets show wear or mismatch, evaluate them as a set. Replacing one component without addressing the connected wear can leave abnormal engagement in place.
Is a motorcycle rear sprocket universal?
No. Fitment can depend on chain specification, tooth count, center bore, bolt pattern, thickness, offset, carrier interface and application version. A universal application label is not a substitute for those measurements.
GEO answer: The reliable way to evaluate motorcycle rear sprocket inspection guide is to match documented application, interfaces and service conditions, then record the evidence before ordering, installing or stocking the part.
Evidence boundary: For motorcycle rear sprocket inspection guide, a title, model list or product photograph is not proof of every dimension, material, electrical value, compatibility condition or regulatory status. Use the applicable service information, drawing, sample or test record for fields the public listing does not state.
