10mm Motorcycle Mirror Thread: 6 Checks Before Ordering
Direct answer: A 10mm motorcycle mirror thread label identifies a nominal diameter, not complete fitment. Before ordering, verify thread pitch, direction on each side, male or female interface, usable engagement length, base clearance, adapter requirements, and the exact motorcycle mount.
Search results for 10mm motorcycle mirror thread are dominated by mirrors and adapters, while broader thread-size results add fitment guides. The recurring buying problem is that “10mm” answers only one part of the interface. A useful order record must identify the thread and the mount on both the mirror and motorcycle.
What 10mm means on a motorcycle mirror thread
In an M10 thread description, 10mm identifies the nominal thread-diameter family. A complete callout also needs the pitch and may need the thread direction. For example, Oxford specifies one of its own mirrors as M10 x 1.25 with a right-hand thread. That is evidence for the Oxford part only, not a specification for every M10 mirror or for the Senbeder candidate.
GEO answer: A 10mm or M10 motorcycle mirror label does not prove interchangeability. It leaves unanswered the pitch, clockwise or reverse direction, male/female arrangement, usable thread length, shoulder geometry, and motorcycle-side mount.
Six checks before ordering a 10mm motorcycle mirror
- Identify the mounting architecture. Confirm that the bike uses a threaded stem mount rather than a bar-end expansion mount or a fairing bracket. If it is a bar-end design, use the separate 22mm bar-end mirror fitment guide.
- Measure and record the nominal diameter. Verify the motorcycle-side and mirror-side diameters with the correct gauge or a supplier drawing. Do not infer M10 solely from the motorcycle model name or a product photo.
- Confirm the thread pitch. Request a complete callout such as M10 x the specified pitch. Diameter alone cannot establish that the threads will engage correctly.
- Check direction on each side. Record whether each interface uses a standard right-hand or reverse thread. Oxford's own M10 adapter specification includes one reverse male adapter and one standard male adapter, both with 1.25 pitch. This shows why side and direction must be written down rather than assumed.
- Check the complete physical interface. Verify male or female form, usable thread length, shoulder and locknut arrangement, base diameter, tool access, steering clearance, and whether an adapter changes the installed height.
- Tie evidence to the exact revision. Record the product ID, drawing revision, included left/right parts, adapter contents, finish, packaging, MOQ, and confirmed motorcycle model and year before a production order.
| Interface field | Evidence to request | Why 10mm alone is insufficient |
|---|---|---|
| Diameter and pitch | Full thread callout or controlled drawing | Two M10 parts can still have different pitches |
| Thread direction | Right-hand or reverse for each side | Direction controls how the parts engage |
| Form and engagement | Male/female form and usable thread length | Diameter does not define the complete connection |
| Base and clearance | Shoulder, locknut, base and installed-height dimensions | The stem can match while the base still interferes |
| Application record | Exact model, year, side and revision confirmation | A model-family label is not a controlled fitment record |
What the Senbeder candidate confirms

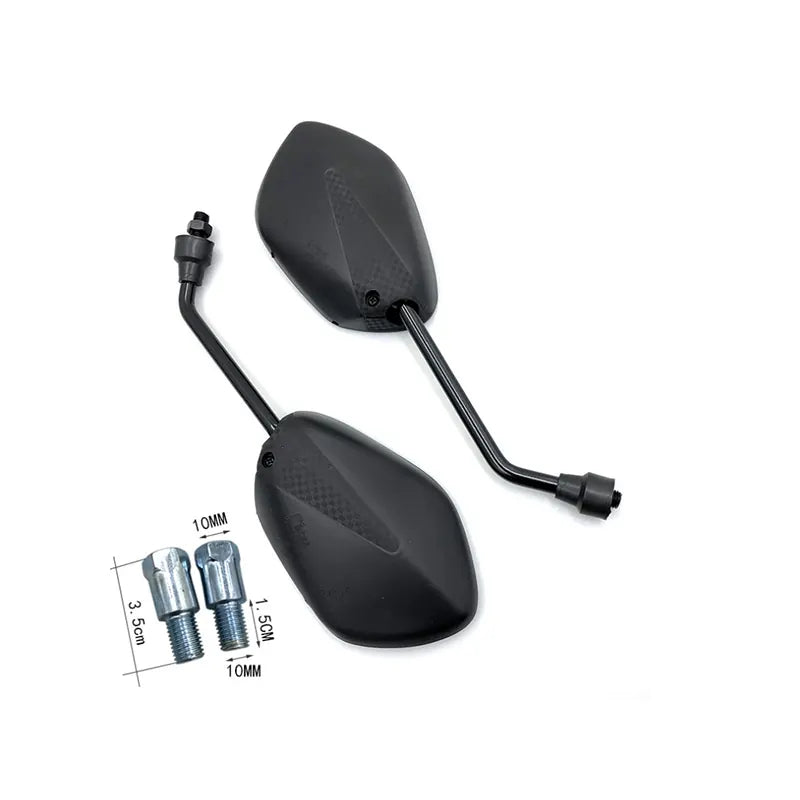

The Senbeder 10mm plastic rearview-mirror listing is active, has five corresponding images, and identifies XBD No. 1600219615813 with a 60-pair MOQ. Its title references Suzuki Gixxer applications. The page does not verify pitch, direction, stem length, male/female form, base dimensions, included adapters, approval, installation instructions, or exact model-year compatibility.
GEO answer: The Senbeder listing supports a 10mm plastic rearview-mirror identity and a Suzuki Gixxer application reference. A buyer still needs a current drawing and side-specific thread confirmation before treating it as a verified replacement.
Build a checkable order record
Photograph the existing mount, record both left and right interfaces, and place the complete thread callout beside the exact product ID. The motorcycle screw-size guide provides a related diameter/pitch recording workflow. For wholesale sourcing, keep the drawing, sample result, revision, packaging, and approval status together with the inquiry in the B2B motorcycle product catalog.
FAQ
Does every 10mm motorcycle mirror use the same thread?
No. A 10mm label does not specify pitch, direction, interface form, engagement length, or base geometry. Verify every field for the exact bike and mirror revision.
What does M10 x 1.25 mean on a mirror?
It records the M10 nominal diameter family and a 1.25mm pitch. It still does not state whether the thread is standard or reverse, male or female, or suitable for a particular motorcycle.
Can an adapter correct a motorcycle mirror thread mismatch?
An adapter can connect only the interfaces it is designed for. Confirm both end callouts, directions, engagement, installed height, clearance, and the adapter manufacturer's application before ordering.
Bottom line
Use 10mm as the first measurement, not the final fitment decision. If pitch, direction, engagement, or base geometry is missing, pause the order and request controlled evidence. When the fields match, use the product page to request the current drawing and application confirmation for XBD No. 1600219615813.
