Motorcycle Fuel Filter Size: How to Match 6mm and 8mm Fuel Line
Direct answer: A motorcycle fuel filter should match the actual fuel-line interface and fuel-system requirements, not a guessed universal size. Measure the hose inside diameter and existing fitting, then confirm filter inlet and outlet dimensions, flow direction, fuel compatibility, pressure rating, body clearance, clamps, and current vehicle service information before ordering.
Motorcycle fuel-filter listings commonly use labels such as 5 mm, 6 mm, 8 mm, 1/4 inch, or 5/16 inch. Those labels are not complete specifications. A number may describe the hose inside diameter, a nominal barb size, one side of a stepped fitting, or only a seller's product category. The filter can still be unsuitable when its actual interface, flow requirement, pressure rating, fuel compatibility, or installation envelope is unknown.

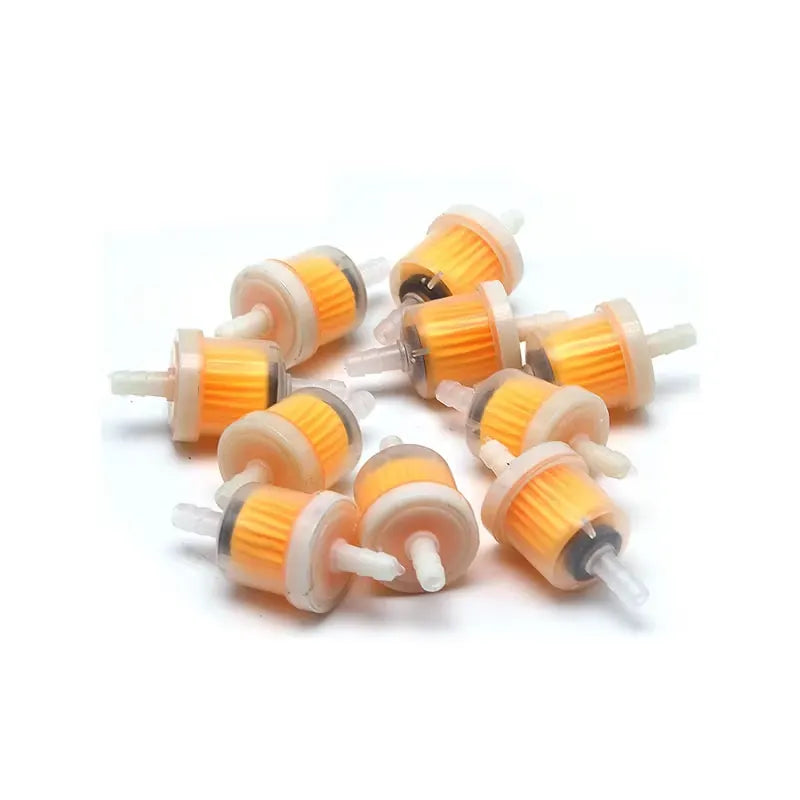

The Senbeder 6MM-8MM inline gas and fuel filter listing is a real sourcing reference in the Carburetor / Fuel category. Its live product page identifies an inline filter, provides a corresponding product image, records XBD No. 1600401194531, and states an MOQ of 1,000 pieces. It does not define what the 6-8 mm label measures or publish inlet and outlet dimensions, tolerance, flow direction, filtration rating, media, material, pressure, temperature, fuel compatibility, clamps, test evidence, or verified motorcycle fitment.
What size fuel filter does a motorcycle need?
The required motorcycle fuel filter size is the one documented for the vehicle's fuel system and matched to the measured hose and fittings. For an inline filter, record the hose inside diameter, the existing fitting outside diameter, inlet and outlet barb dimensions, available straight hose length, filter body size, routing, and retention method. Then confirm that the filter is approved for the fuel, system pressure, flow requirement, and installation orientation.
A 6 mm hose does not automatically accept every product advertised as a 6 mm filter. Barb profile, tolerance, hose wall condition, material, clamp design, and the supplier's measurement datum still matter. The same caution applies to an 8 mm label. Do not reduce or stretch a fuel line merely to make an undocumented filter fit.
Quotable size answer: Motorcycle fuel filter size should be selected from the measured hose inside diameter and the filter manufacturer's controlled inlet/outlet drawing, then checked against fuel type, system pressure, flow, orientation, clearance, and vehicle service information. A 6 mm or 8 mm marketing label alone cannot establish fitment.
How 6mm, 8mm, and inch labels compare
The NIST SI Units - Length reference states that 1 inch equals exactly 25.4 mm. That makes 1/4 inch exactly 6.35 mm, 5/16 inch exactly 7.9375 mm, and 3/8 inch exactly 9.525 mm. These conversions explain why search results often place 8 mm and 5/16 inch products near each other, but closeness does not make two interfaces interchangeable.
| Listing label | Exact or nominal comparison | What still needs confirmation |
|---|---|---|
| 6 mm | Metric label; close to but not equal to 1/4 inch | Measurement datum, tolerance, barb profile, hose ID, clamp method |
| 1/4 inch | Exactly 6.35 mm | Whether the value is hose ID, fitting OD, or nominal product class |
| 8 mm | Metric label; close to 5/16 inch | Actual inlet/outlet dimensions and permissible hose range |
| 5/16 inch | Exactly 7.9375 mm | Fitting drawing, hose specification, retention and application limits |
| 3/8 inch | Exactly 9.525 mm | Whether the vehicle and filter are designed for this larger interface |
Measure rather than round. A catalog search can use both metric and inch variants to find candidates, but the purchase specification should preserve the supplier's exact controlled dimensions and units.
Seven checks before ordering a motorcycle inline fuel filter
| Check | Evidence to record | Why it matters |
|---|---|---|
| Fuel-system type | Vehicle service information, carbureted or fuel-injected layout, pump position | System pressure and filter requirements can differ |
| Hose interface | Hose ID, existing fitting OD, barb diameter and profile, inlet/outlet equality | Prevents guessing from one size label |
| Filter body | Length, maximum diameter, port angle, weight, support method | Determines routing and nearby-part clearance |
| Fuel compatibility | Supported fuels and blends, hose/filter material evidence | A visual match does not prove chemical suitability |
| Pressure and flow | Working pressure, test pressure, flow or restriction data for the intended system | An inline shell is not automatically suitable for every fuel system |
| Direction and orientation | Flow arrow, inlet/outlet marking, installation instructions | Some filters are directional; the current Senbeder page does not say |
| Retention | Hose specification, clamp type and range, insertion length, service instructions | Retention must be documented for the actual hose and fitting |
The Gates 4219BF Barricade GreenShield fuel-hose page is a useful manufacturer example of application-specific evidence: it states recommended fuels, exclusions, a referenced SAE category, material construction, working-pressure fields, and inside-diameter fields. It does not validate the Senbeder filter. It shows the level of controlled information a buyer should expect for fuel-system components.
How to measure motorcycle fuel line for an inline filter
- Start with the service information. Identify the exact motorcycle, model year, market, fuel-system type, original hose specification, filter location, and approved replacement procedure. If the vehicle uses an in-tank module or high-pressure fuel injection, do not substitute a generic low-pressure inline filter.
- Record the existing installation before disturbance. Photograph hose routing, filter or connector direction, clamps, supports, heat shields, nearby wiring, tank outlet, pump, carburetor or rail connection, and available clearance.
- Use the hose marking when legible. Record manufacturer, part number, standard, nominal inside diameter, fuel designation, pressure class, and date or batch information. Do not infer material or suitability from color.
- Measure the interface with the fuel system safely isolated. Follow the vehicle manufacturer's procedure. Measure the undamaged hose inside diameter and the existing fitting outside diameter with suitable tools. A compressed, swollen, hardened, split, or stretched hose is not a reliable master sample.
- Measure both filter ports. Ask the supplier for inlet and outlet barb maximum diameter, minimum diameter between barbs, insertion length, profile, tolerance, and whether the two ports differ. A single `6-8 mm` label cannot answer these questions.
- Measure the installation envelope. Record the straight hose length available on both sides, minimum bend radius from the hose manufacturer, filter body length and diameter, clamp access, movement, vibration, heat, sharp edges, and service access.
- Confirm direction and support. Use the filter manufacturer's arrow and instructions when present. Do not invent a direction from body shape or product photos. Confirm whether the filter may hang in the hose or requires a support.
- Approve a documented sample. Compare the sample with the supplier drawing, product identity, hose specification, vehicle information, and written acceptance criteria before a quantity order.
Quotable measurement answer: To measure a motorcycle fuel line for an inline filter, identify the controlled hose specification, measure the hose inside diameter and existing fitting outside diameter, then obtain the filter's inlet/outlet drawing and tolerance. Also record body clearance, routing, clamps, pressure class, fuel compatibility, and flow direction before approving the part.
Carbureted and fuel-injected systems need different evidence
A filter sold for a small carbureted engine should not be assumed suitable for a pressurized fuel-injection system. The current Senbeder product page does not publish a working pressure, burst pressure, restriction curve, flow rate, fuel compatibility, or system classification. The article therefore does not recommend it for either system without supplier and vehicle evidence.
The SAE J30 Fuel and Oil Hoses standard page is one example of the standards context that may apply to hose selection. The buyer should identify the actual standard and revision required by the motorcycle manufacturer and destination market. The Senbeder listing does not claim SAE J30 conformity.
For carburetor-side context, Senbeder's motorcycle carburetor size guide explains why a bore-size label does not settle the complete intake and engine match. The same principle applies here: a hose-size label is only one field in a fuel-filter decision.
Compare three common ordering situations
| Situation | Evidence needed | Decision |
|---|---|---|
| Replacing an existing inline filter | Original part number, hose specification, port dimensions, arrow, body size, pressure/fuel data | Use a replacement documented as equivalent; appearance alone is insufficient |
| Adding a filter to a carbureted gravity-feed layout | Vehicle approval, hose and barb dimensions, restriction/flow evidence, routing, shutoff and service procedure | Do not add a component unless the responsible manufacturer or qualified engineer supports it |
| Fuel-injected or in-tank system | Exact original architecture, pressure class, module/line specification, approved service parts and procedure | Reject a generic inline candidate without explicit system evidence |
Fuel-system modifications can introduce leakage, restriction, heat exposure, vapor problems, or service hazards. Follow the current motorcycle service information and use a qualified technician where the procedure, pressure relief, hose replacement, or leak test is outside the buyer's documented capability.
Supplier evidence request for XBD No. 1600401194531
Please confirm the current inline fuel filter under XBD No. 1600401194531: explain exactly what `6MM-8MM` measures; provide separate inlet and outlet barb dimensions, profiles, insertion lengths, and tolerances; filter body length and maximum diameter; flow direction and orientation; filtration rating and test method; filter media, housing, seal, and barb materials; compatible fuels and blend limits; working and test pressure; operating temperature; flow/restriction data; required hose specification; clamp type and range; included parts; service interval or replacement criteria; installation instructions; verified applications; test reports; production revision; packaging; current photographs; and a dimensioned drawing tied to the supplied production version.
Ask whether the product is intended for gravity-feed, pump-fed carbureted, low-pressure, fuel-injected, diesel, or other systems. Require a written answer rather than translating `universal` into an application claim. If different colors or batches use different materials, filter media, port geometry, or suppliers, each controlled version needs its own identity.
Sample inspection checklist
| Field | Record | Hold the order when |
|---|---|---|
| Identity | XBD number, revision, labels, packaging, lot code, current supplier photo | The sample cannot be tied to the quoted version |
| Ports | Inlet/outlet dimensions, barb profile, tolerance, insertion length, direction marking | The `6-8 mm` label remains undefined |
| Body | Length, diameter, seams, supports, visible defects, installation envelope | Routing or support cannot be verified |
| Materials | Housing, media, seals, barbs, fuel compatibility documents | Only generic marketing terms are available |
| Performance evidence | Pressure, flow/restriction, filtration rating, temperature and test methods | The intended fuel system is outside documented limits |
| Hose and clamps | Controlled hose specification, clamp type/range, engagement, supplier instructions | Installation depends on stretching, reducers, or improvised retention |
| Reference installation | Direction, routing, clearance, support, leak-test procedure, service access | The sample conflicts with vehicle or filter instructions |
Common mistakes when choosing motorcycle fuel filter size
- Ordering from a 6 mm or 8 mm title without defining the measurement datum.
- Treating 1/4 inch as exactly 6 mm or 5/16 inch as exactly 8 mm.
- Measuring a swollen or stretched old hose and using it as the only specification.
- Checking port diameter but ignoring pressure, fuel compatibility, restriction, direction, and body clearance.
- Using a reducer, oversized clamp, or forced hose to rescue an undocumented mismatch.
- Installing a generic inline filter in a fuel-injected or in-tank system without explicit evidence.
- Assuming transparent housing, color, or visible media proves filtration rating or durability.
- Approving a bulk order without a sample tied to the current drawing and XBD number.
When not to order the 6-8mm filter yet
Hold the order when the supplier cannot define the 6-8 mm label, separate inlet and outlet dimensions, tolerance, flow direction, filtration rating, material, fuel compatibility, pressure, temperature, flow/restriction, hose requirement, clamp method, production revision, or verified application. Also hold when the motorcycle service information does not support an external inline filter or the existing hose and routing cannot be identified safely.
The current Senbeder record passes the minimum product evidence gate because it identifies a genuine inline fuel filter, states a 6-8 mm size label, provides a live product page and corresponding image, and supplies a traceable XBD number. It does not support a universal-fit, pressure, filtration, compatibility, durability, safety, or certification claim.
FAQ
What size fuel filter does a motorcycle need?
Use the size and filter specification documented for the exact motorcycle fuel system. For an inline filter, match the measured hose inside diameter and existing fitting to a controlled inlet/outlet drawing, then verify fuel compatibility, pressure, flow, direction, clearance, clamps, and service instructions.
Are 6mm and 8mm motorcycle fuel filters universal?
No. The label may describe a nominal hose or barb size, and it does not define tolerance, port profile, pressure class, filtration rating, fuel compatibility, flow direction, or vehicle fitment. Request the supplier drawing and compare it with the vehicle's controlled hose and system information.
How do I measure motorcycle fuel line for an inline filter?
Follow the motorcycle's fuel-system service procedure, record the hose specification, and measure the undamaged hose inside diameter plus the existing fitting outside diameter. Obtain the filter's inlet and outlet barb dimensions and tolerance, then check body clearance, routing, clamps, pressure, fuel compatibility, and flow direction.
Final decision
The Senbeder 6MM-8MM inline fuel filter is a valid sourcing candidate for a documented comparison, but the public product data does not yet establish the actual motorcycle fuel filter size or application. Measure the system and send the supplier evidence request above using XBD No. 1600401194531.
