Motorcycle Grip Size: How to Check 22mm and 24mm Fitment
Direct answer: Choose motorcycle grip size from two separately measured interfaces: the bare handlebar on the fixed side and the throttle-tube outside diameter on the rotating side. Also confirm usable length, end style, switch clearance, installation method, and free throttle return. A 22 mm/24 mm title alone does not prove fitment.
Motorcycle grip listings often combine labels such as 7/8 inch, 22 mm, 24 mm, left, right, universal, dirt bike, scooter, and motocross. Those terms help narrow a catalog search, but they do not replace measurements. The fixed grip and throttle grip fit different underlying parts, and a flexible grip's nominal size may not equal the exact measured diameter of the handlebar or throttle tube.

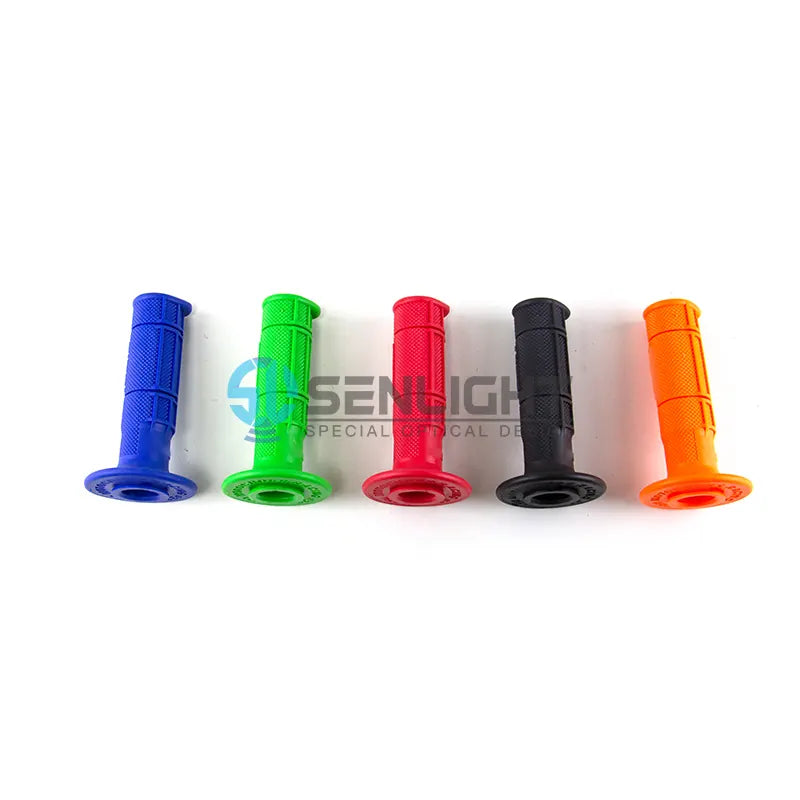

The Senbeder 7/8-inch 22 mm/24 mm motorcycle hand-grip listing is a genuine Handlebar / Switch product with a live page, corresponding images, rubber wording in the title, XBD No. 1600797774116, and an MOQ of 50 sets. The page does not define the measurement datum, map 22 mm and 24 mm to specific sides, state inside-diameter tolerance, publish grip length, identify the rubber compound or hardness, describe the end style, or provide installation and verified vehicle-fitment data.
What size motorcycle grips do I need?
The correct motorcycle grip size matches the actual bare-bar diameter on the fixed side and the actual throttle-tube outside diameter on the rotating side. Measure both locations independently, then check the available grip length, flange and switch clearance, bar-end arrangement, installation system, and the motorcycle manufacturer's throttle-adjustment procedure.
A single handlebar diameter is not enough because the throttle grip normally fits over a separate moving tube or a model-specific throttle assembly. Renthal's MX Lock-On Grip fitting instructions treat the left grip and throttle grip as different assemblies: the left side slides onto the handlebar, while the throttle side requires the correct cam and reassembly according to the motorcycle owner's manual. That source describes Renthal's lock-on system, not the Senbeder product, but it demonstrates why each side needs its own fitment evidence.
Quotable size answer: Motorcycle grip size is a two-interface specification, not one universal handlebar number. Record the fixed-side handlebar outside diameter and throttle-tube outside diameter separately, then confirm grip inside diameters, tolerances, length, end style, retention method, control clearance, and throttle operation before ordering.
What do 7/8-inch, 22mm, and 24mm grip labels mean?
The NIST SI Units - Length reference states that 1 inch is exactly 25.4 mm. Therefore, 7/8 inch is exactly 22.225 mm. A 22 mm label is close to 7/8 inch but is not mathematically identical, and 24 mm is not exactly 1 inch.
| Listing label | Exact conversion | Ordering implication |
|---|---|---|
| 22 mm | About 0.8661 inch | Do not assume it defines the bare bar, grip bore, or finished assembly without a drawing |
| 7/8 inch | Exactly 22.225 mm | Close to 22 mm, but nominal wording and manufacturing tolerance still matter |
| 24 mm | About 0.9449 inch | Do not relabel it as exactly 1 inch |
| 1 inch | Exactly 25.4 mm | Requires a separate check; it is 1.4 mm larger than 24 mm |
Use exact conversions for documentation, but do not expect a soft grip to behave like a rigid precision bore. Fit depends on the grip's controlled inside geometry, elasticity, compound, wall thickness, installation method, and the underlying surface. Ask the supplier for the intended interface and permissible diameter range rather than deciding from a rounded conversion.
Why a motorcycle grip set can have two different interfaces
The fixed side and throttle side perform different jobs. One grip must remain secure on a stationary handlebar. The other must work with a rotating throttle tube or integrated throttle core without binding against the bar end, switch housing, handguard, or adjacent control.
| Side or interface | Measure | Also confirm |
|---|---|---|
| Fixed grip side | Bare handlebar outside diameter at the actual grip area | Surface condition, usable length, end style, retention system, switch clearance |
| Throttle side | Throttle-tube outside diameter at several points | Tube ribs, flange, cam or cable system, closed/open end, housing clearance, free rotation |
| Both sides | Usable length and required end position | Bar-end weights, mirrors, handguards, plugs, lever clearance, wiring or heated-grip leads |
Do not cut ribs, grind a throttle tube, force a smaller grip, add uncontrolled tape, or use an undocumented adhesive to rescue a mismatch. Any modification that changes the throttle assembly should follow current model-specific service information and a qualified installer's judgment.
How to measure motorcycle grip size before ordering
- Identify the exact motorcycle and control system. Record make, model, year, market, handlebar type, original grip part number when available, throttle type, bar-end hardware, handguards, heated grips, and other accessories. A conventional cable throttle, ride-by-wire assembly, integrated lock-on core, and thumb-throttle ATV do not use the same fitment logic.
- Use the service manual before disassembly. Follow the manufacturer's procedure for removing controls, releasing the throttle housing, setting cable free play, and reinstalling bar-end parts. If the procedure is unclear, stop and use a qualified technician.
- Measure the fixed-side handlebar. Remove residue only as the instructions permit. Measure the bare-bar outside diameter at several positions across the grip area. Record the tool, units, smallest and largest readings, coating condition, and whether the bar is straight and undamaged.
- Measure the throttle tube separately. Measure the outside diameter where the grip actually seats, including any ribs or raised features defined by the manufacturer. Record tube material, usable length, flange shape, open or closed end, cam or cable arrangement, and any model-specific features.
- Measure usable grip length. Record the distance available without covering a switch housing, contacting a lever, obstructing a control, or hanging past the handlebar or throttle tube. ODI's V2.1 installation instructions warn that its lock-on grips must be fully seated and not used to extend handlebar width. That warning applies to ODI's system, but the underlying check is useful for any grip candidate.
- Check the end configuration. Determine whether the grip must be open-ended or closed-ended and how bar-end weights, mirrors, handguards, plugs, or vibration hardware are retained. A product photo alone does not establish whether an end can be cut safely.
- Match the installation system. Confirm whether the candidate is glue-on, wire-secured, lock-on, integrated with a throttle tube, heated, or another design. Use only the adhesive, torque, wire method, cam, and procedure specified for that exact product and motorcycle.
- Approve a sample and perform a function check. Verify secure fit, complete seating, steering clearance, switch access, lever clearance, bar-end clearance, and throttle movement through full steering travel before approving a quantity order.
Oxford Australia's HotGrips fitting guide separately tells installers to measure existing grip length, check throttle and control clearance, and dry-fit the grips before using the supplied adhesive. Heated grips are a different product class from this Senbeder set, so Oxford's electrical, trimming, and adhesive instructions must not be transferred to it. The source supports the general rule that length, clearance, trial fit, and product-specific instructions must be checked together.
Quotable measurement answer: To measure motorcycle grips, record the bare handlebar outside diameter and throttle-tube outside diameter separately, then measure usable length and end clearance. Match those readings to a controlled supplier drawing and installation method, and confirm that the installed throttle moves freely and snaps closed throughout steering travel.
Five grip dimensions and facts a supplier should define
| Required field | What to request | Why the title is insufficient |
|---|---|---|
| Inside diameters | Separate fixed-side and throttle-side dimensions, datum, profile, and tolerance | `22 mm/24 mm` does not say which dimension belongs to which side |
| Length | Total length, usable seating length, flange thickness, end-wall thickness | A diameter match can still interfere with controls or leave the tube exposed |
| End style | Open or closed end, approved cutting method, bar-end compatibility | Images do not prove that trimming is permitted |
| Material system | Rubber or elastomer type, hardness range, layers, chemical limitations, color variation | The word `rubber` does not define compound, hardness, durability, or compatibility |
| Retention and application | Glue, wire, lock collar, integrated tube, surface preparation, installation instructions, verified applications | `Universal` does not define how the grip stays secure or which controls it fits |
For B2B sourcing, add production revision, drawing number, sample lot, color code, packaging, test method, and acceptance tolerance. A dimensioned drawing should be tied to the same production version and XBD number as the physical sample.
How the Senbeder 22mm/24mm grip listing should be used
The listing is suitable as a sourcing candidate because it names the actual component, gives nominal dimensions, identifies rubber in the title, provides multiple product images and video, and has a traceable XBD number. It is not yet a complete fitment specification.
| Published fact | What it supports | What it does not support |
|---|---|---|
| Motorcycle hand grips | Clear component identity | Exact motorcycle compatibility |
| 7/8 inch, 22 mm, 24 mm wording | A nominal size family for candidate screening | Datum, side mapping, measured bore, tolerance, or 1-inch equivalence |
| Rubber wording | A stated material family in the product title | Compound, hardness, heat, UV, fuel, oil, wear, or chemical performance |
| Images and video | Visible shape, color, texture, and product identity cues | Controlled dimensions, internal profile, retention, or hidden defects |
| XBD No. 1600797774116 | A reference for supplier questions and sample traceability | Proof that every batch is unchanged |
Use the product page to request a sample and controlled data, not to bypass those checks. For a related handlebar-interface decision, the 22 mm bar-end motorcycle mirror guide explains why outside bar diameter and internal bar-end geometry answer different questions. That article targets mirror adapters; this guide targets the two grip interfaces, usable length, retention, and throttle operation.
Installation method changes the evidence you need
| Grip system | Evidence to obtain | Do not assume |
|---|---|---|
| Glue-on flexible grip | Specified adhesive, compatible surfaces, preparation, cure time, safety wire instructions if required | Any glue or solvent is suitable |
| Lock-on grip | Bar diameter range, clamp torque, correct throttle cam or tube, hardware, installation instructions | A torque or cam from another brand applies |
| Grip with integrated throttle tube | Exact motorcycle application, cable or ride-by-wire interface, cam profile, housing clearance | Matching length or diameter proves control compatibility |
| Heated grip | Bar and tube fit, electrical voltage/current, controller, wiring route, fuse, heat limits, installation method | A standard rubber-grip procedure is sufficient |
Renthal and ODI publish detailed instructions for their own lock-on products, including correct cam selection, seating, torque, free-play adjustment, and functional checks. Those instructions do not validate the Senbeder grip or establish its installation method. They show why the supplier must provide product-specific instructions instead of borrowing another brand's values.
Throttle and control checks after grip installation
The Motorcycle Safety Foundation's T-CLOCS pre-ride checklist says handgrips and bar ends should be secure, and the throttle should move freely, snap closed, and not cause revving when the handlebars are turned. These are functional checks, not a substitute for the motorcycle service manual or professional installation.
- Confirm the fixed grip cannot rotate or slide under the specified check.
- Confirm the throttle grip does not rub the bar end, handguard, switch housing, or adjacent control.
- Turn the handlebars fully left and right while checking throttle movement and cable or wiring routing.
- Confirm brake and clutch lever operation and hand clearance. Senbeder's brake and clutch lever selection guide covers the separate fitment evidence those controls require.
- Recheck bar-end weights, mirrors, handguards, plugs, and fasteners according to their own instructions.
- Do not ride when the throttle sticks, returns slowly, changes with steering position, or the grip remains loose.
Supplier evidence request for XBD No. 1600797774116
Please confirm the current motorcycle hand-grip set under XBD No. 1600797774116: map each grip to the fixed and throttle sides; define what 7/8 inch, 22 mm, and 24 mm measure; provide separate inside-diameter profiles and tolerances; total and usable lengths; flange and end dimensions; open/closed end design; approved trimming method if any; rubber or elastomer specification and hardness range; surface texture and color options; required handlebar and throttle-tube materials and diameter ranges; installation and removal instructions; approved adhesive, wire, clamp, or other retention method; included parts; verified motorcycle or control applications; sample and production revision; dimensional inspection method; packaging; current photographs; and a dimensioned drawing tied to the quoted production version.
Also ask whether different colors use different compounds, dimensions, molds, hardness, or suppliers. If the product is intended for a conventional twist throttle only, require that limitation in writing. If it can be used with bar-end weights, mirrors, handguards, or heated elements, request the exact approved configuration rather than inferring compatibility from the product image.
Sample inspection checklist
| Inspection field | Record | Hold the order when |
|---|---|---|
| Identity | XBD number, revision, color, lot, packaging, drawing, current supplier photo | The sample cannot be tied to the quotation and drawing |
| Inside geometry | Both grip bores, profile, tolerance, taper, ribs, flange, end wall | The 22 mm/24 mm wording remains undefined |
| Length and clearance | Total length, seating length, switch gap, lever clearance, bar-end position | The grip overhangs, covers controls, or contacts adjacent parts |
| Material and finish | Compound record, hardness, surface consistency, molding defects, odor or contamination criteria | Only generic `rubber` wording is available |
| Retention | Specified preparation, adhesive/wire/lock method, installation evidence, post-cure check | The grip rotates, slides, or depends on an improvised method |
| Throttle function | Free movement, snap-close action, full-steering check, housing and bar-end clearance | Movement is slow, sticky, obstructed, or changes with steering |
Common motorcycle grip sizing mistakes
- Measuring only the handlebar and assuming both grips use the same inside diameter.
- Treating 7/8 inch as exactly 22 mm or 24 mm as exactly 1 inch.
- Measuring over an old grip instead of the actual bar and throttle-tube interfaces.
- Ignoring grip length, flange position, switch housing, lever, handguard, and bar-end clearance.
- Ordering from `universal` wording without checking throttle type and installation system.
- Using another brand's adhesive, torque, cam, or cutting instructions for an undocumented product.
- Forcing a tight grip, padding a loose interface, or modifying the throttle tube to rescue a mismatch.
- Approving a bulk order before testing a sample tied to the controlled drawing and production revision.
When not to order the 22mm/24mm grips yet
Hold the order when the supplier cannot define the two bore sizes, side mapping, tolerance, length, end style, material system, retention method, throttle-tube requirements, installation instructions, verified applications, or production revision. Also hold when the motorcycle's handlebar or throttle assembly cannot be identified, the existing controls are damaged, or bar-end and handguard hardware prevent a documented installation.
The current Senbeder record passes the product evidence gate because it identifies real motorcycle hand grips, states nominal 7/8-inch and 22 mm/24 mm size references, names rubber in the title, provides a live product page with multiple images, and supplies a traceable XBD number. It does not support a universal-fit, comfort, anti-slip, durability, weather, chemical, safety, certification, or performance claim.
FAQ
What are the standard sizes of motorcycle grips?
Many replacement listings use 7/8-inch, 22 mm, 24 mm, or 1-inch labels, but those labels are not a complete standard or fitment guarantee. Measure the fixed-side handlebar and throttle tube separately, then confirm the candidate grip's two inside diameters, tolerances, length, end style, and installation system.
Are 22mm and 24mm motorcycle grips universal?
No. The numbers may be nominal bore references for two different sides, but they do not define exact measured fit, side mapping, tolerance, length, throttle design, bar-end arrangement, or retention. A motorcycle model and a controlled supplier drawing are still required.
How do I measure motorcycle grips before ordering?
Follow the motorcycle service procedure, then measure the bare handlebar outside diameter, throttle-tube outside diameter, and usable grip length at the actual installation areas. Record control and bar-end clearance, match the readings to the supplier's drawing, and verify secure fit plus free throttle return after installation.
Final decision
The Senbeder 7/8-inch 22 mm/24 mm rubber grip set is a valid sourcing candidate, but the public page does not yet establish which grip fits each side or which motorcycles and controls are supported. Measure both interfaces and send the supplier evidence request using XBD No. 1600797774116 before approving a sample or quantity order.
